Product Information

Product description

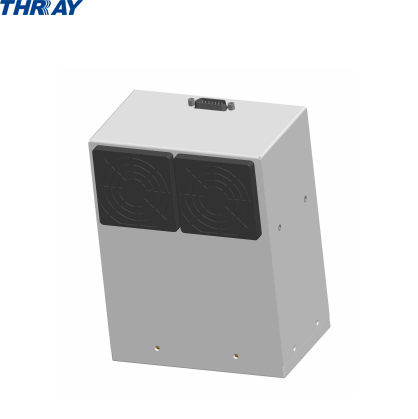

R10S0XF50X100 surface light source adopts high performance UV LED through array optimization design, compared with the traditional process, mercury lamp has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. For different use needs, different wavelength of equipment can be selected.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.Earphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (0mm-50mm) , the energy can be evenly irradiate to the surface of the articles to be cured. At 30MM height, the radiation energy can reach 4001mW/cm (405nm, EIT energy meter, Q21) . The lower limit of energy is estimated to be 3600mW/cm when the same level lamp bead is used in this stage and the same level lamp bead is used in the later stage of mass production.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 Various control methods, in addition to our THRAYRAD1C 600 controller, independent control equipment switch, but also according to customer needs to develop different programs to more convenient use of the equipment. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

Technical parameter
