Product Information

Product description

THRAYPOT215AT13 Φ3365A point light source is designed by optical optimization with high performance UV LED. Compared with traditional mercury lamp, thraypot215at13 has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on.

Scope of application

• Speakers,

• speakers

• earphones, earplugs

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，Under normal working distance (5mm-20mm) , the energy can be uniformly irradiate to the surface of the articles to be cured, and at 8mm height the radiation energy can reach 8609mW/cm2(Eit is converted by 365nm point light energy meter) .

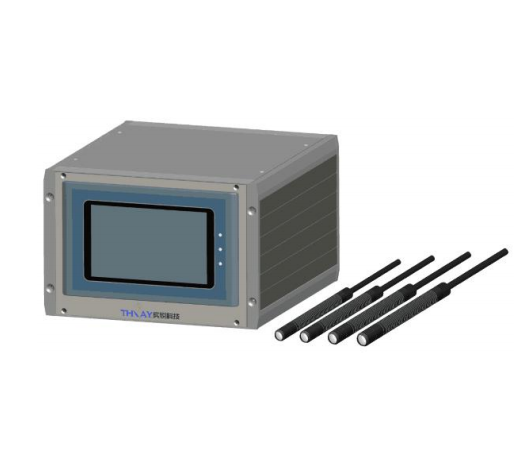

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to our POT2C series controller independent control equipment switch can also be based on customer needs, in addition to other control methods such as: foot switch, photoelectric switch, etc. to more convenient use of the equipment.

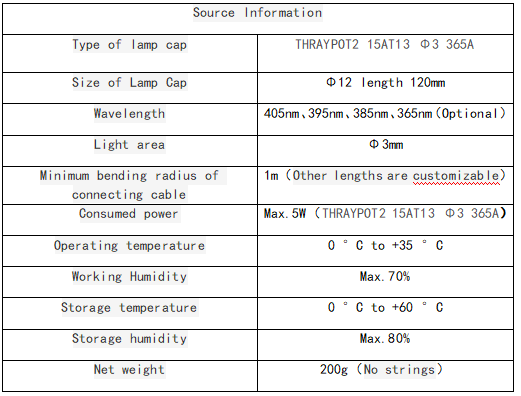

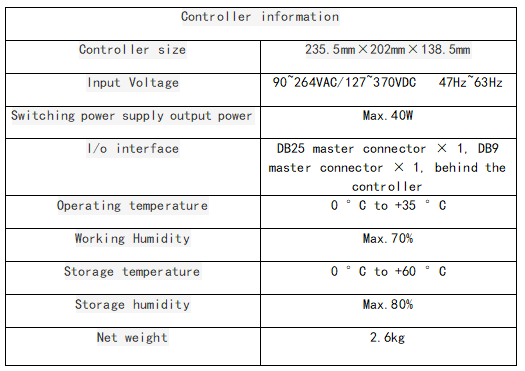

Technical parameter
