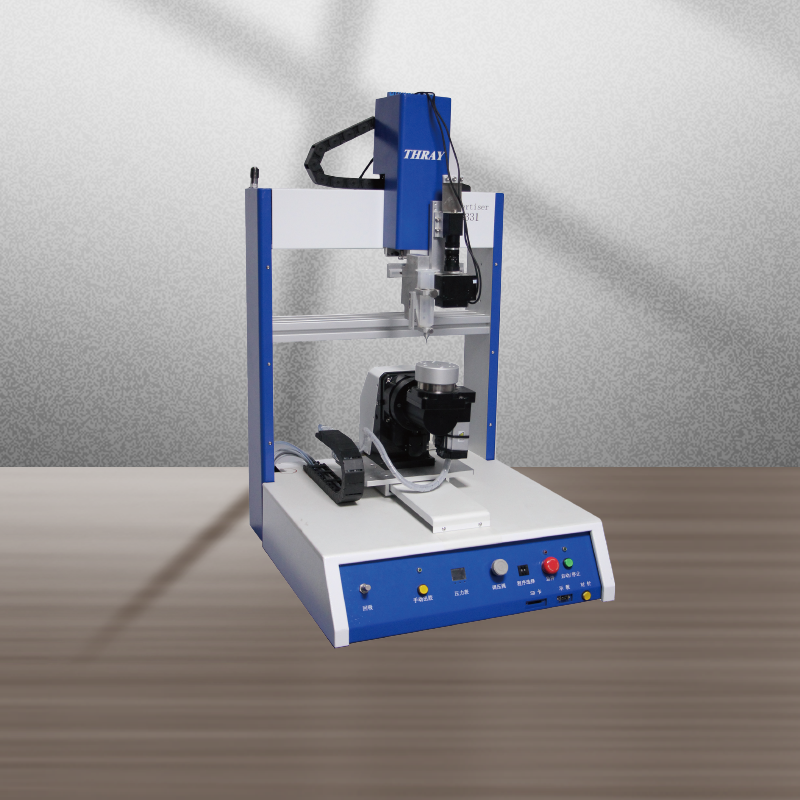

RS331RU table Top five-axis Glue Dispenser

Effective travel：

X-axis-300mm (point head moving from left to right)

Y-axis-300mm (table moving back and forth)

Z-axis-100mm (point head moving up and down)

A-axis-from-90 ° to + 90 °

C-axis-0 ° to 360 °

Speed:

X-axis-500mm/s

Y-axis 500mm/s

Z-axis-100mm/s

AC: 220V

AIR PRESSURE: 5 ~ 7Kgf/m²

Contour size: 592mm×527mm ×997mm

Overall weight: about 60kg
